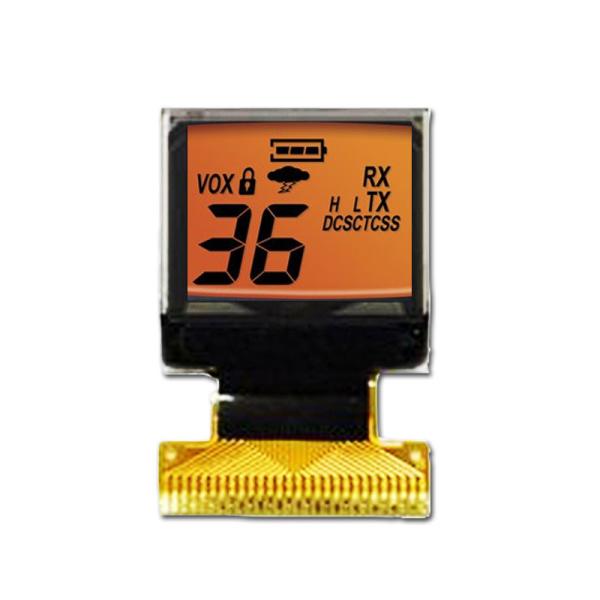

64x48 Low Power PMOLED For Medical Devices

Product Categories

Hangzhou Zoyo chuxian Intelligent Technology Co., Ltd.

Contact Now

Name: 64x48 Low Power PMOLED For Medical Devices
Brand: Zoyo
Price: 2 USD

Brand Name : Zoyo

Model Number : ZY006601

Certification : ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068

Place of Origin : Hangzhou, CHINA

MOQ : Flexible MOQ

Price : $2~$500 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5k-20k pieces per day

Delivery Time : 3-4 weeks

Packaging Details : CUSTOMIZED

Size(inch) : 0.66

Resolution : 64*48

Active Area(mm) : 13.42*10.06

Operating Temperature : -20℃～70℃

Contact Now

GENERAL SPECIFICATIONS
Item		Specification	Unit	Note
Screen Size		0.66
Resolution		64*48	pixels
Operating Temperature		‐40℃~70℃
Storage Temperature		‐40℃~85℃
Module Size	Horizontal (H)	18.46	mm	typ
	Vertical (V)	29.60
	Thickness (T)	1.45
Active Area	Horizontal	13.42	mm
	Vertical	10.06
Interface Type		SPI
Application		Electronic bracelets, instruments
Kind Tips: More details please contact us for products' specifications

The difference between PMOLED and AMOLED

Feature	PMOLED	AMOLED
Matrix Type	Passive Matrix	Active Matrix
Control Mechanism	Sequential control of rows/columns	Individual pixel control via TFTs
Resolution	Lower	Higher
Brightness/Contrast	Good, but less uniform	Superior brightness and contrast
Refresh Rate	Lower, potential flickering	Higher, suitable for dynamic content
Power Consumption	Higher for larger/bright content	More efficient, especially with dark content
Complexity/Cost	Simpler, cheaper	More complex, more expensive
Typical Applications	Small, simple displays	High-end, high-resolution displays

Our Service:

Customer Service: Access to customer support for addressing queries and issues.
Engineering Support: Direct contact with technical engineers for complex integration challenges or custom requirements.

Regular Updates: Provision of firmware updates to ensure compatibility and performance improvements.
Update Instructions: Clear instructions on how to perform firmware updates.

Regulatory Compliance: Information and certification documents for compliance with relevant standards (e.g., CE, RoHS).
Quality Assurance: Documentation on quality control processes and product reliability testing.

CAD Files: 3D models and detailed mechanical drawings to aid in the physical design and integration of the display into the end product.
Mounting Templates: Templates to assist with precise placement and mounting of the display.
